New
Book Now
Available...........!!!
|
New
Book:
"Rebuilding Zenith 32 NDIX Carburetors"
for 356
Porsches!
Soft Cover, Black Spiral Bound!
8.5 x 11 inches in
size!
93 Pages!
150+ All Color
Pictures!
Reviewed by the Best in the
Business!
No Other
Book
Out there
Like This! |

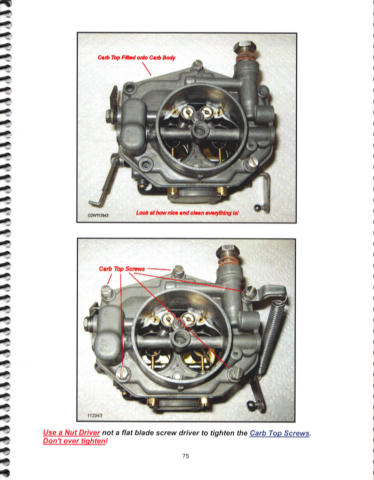

Some
Sample
Pages:
This book is about rebuilding Zenith 32 NDIX
Carburetors, about YOU rebuilding
Zenith 32 NDIX
Carburetors. 150+ detailed pictures and
descriptive text walk YOU through the rebuild
step by step. This book is designed to show
YOU how to do it right! Start with disassembly
of your carburetor, turn the page! Then clean and refurbish the parts, turn
the page! Then reassemble your carburetor step by step, turn the page! Lastly
make final adjustments to your carburetor, and you're done! Rebuilding a
carburetor is not ROCKET SCIENCE, particularly when
YOU have a guide that shows
YOU in pictures and tells
YOU in text, what needs to be done and
when. If this author can learn to rebuild a Zenith
32 NDIC Carburetor and make it work,
SO CAN YOU!!!
Table of
Contents!
Introduction!
First Some Basics - (page 1)
Line Drawing - (page 1)
Part Diagram - (page 2)
Different Versions of Zenith 32 NDIX Carburetors - (page 3)
Table - Types of Zeniths Carburetors - (page 3)
Zenith 32 NDIX Carburetors are Date Stamped - (page 4)

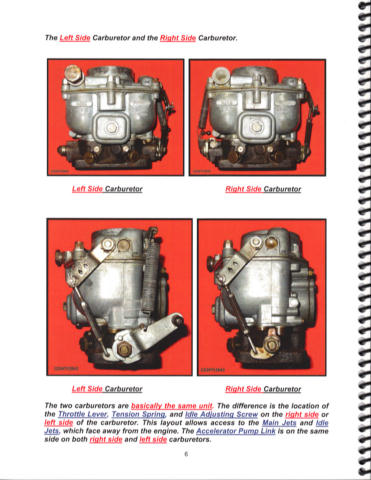

Left Side & Right Side Zenith 32 NDIX Carburetors - (page 5)
What's in a Rebuild Kit? - (page 7)
Disassembly of the Zenith 32 NDIX
Carburetor!

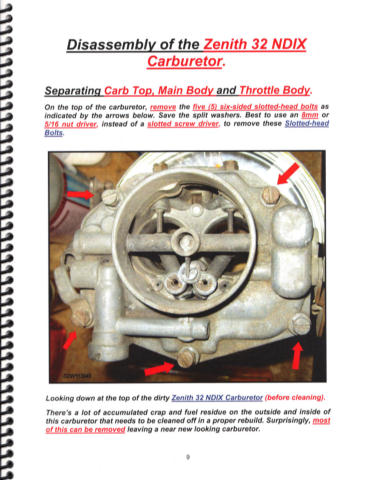

Separating Carburetor Top, Main Carburetor Body & Throttle
Body - (page 9)
Removing Floats - (page 11)
Removing Idle Mixture Screws - (page 13)
Separating Throttle Body from Carburetor Body - (page 14)
Basic Cleaning - (page 15)
Removing Main Jets & Idle Jets from Main Carburetor Body - (page
18)
Removing Pump Jets & Starter Cover - (page 21)
Removing Pump Suction Valve & Pump Pressure Valve - (page 22)
Removing Mixture Tube Holders (with Diffusers) - (page 24)
Disassembling & Cleaning Mixture Tube Holders (with Diffusers)
- (page 26)
Removing & Cleaning Idling Jet Air Bleed or Idle Air Jets - (page
27)
Removing Accelerator Pump Injection Nozzles & Venturis - (page
28)
Removing & Cleaning Retaining Screws & Fixing Screw or Plug
- (page 33)
Resurfacing flat areas: Throttle Body, Main Carb Body, Carb Top - (page
34)
Checking and Cleaning Main Jets & Idle Jets - (page 38)
Cleaning Throttle Lever, Pump Control Rod & Tension Spring - (page
39)
Replacing Accelerator Pump Piston & Float Valve - (page 42)
Reassembly of the Zenith 32 NDIX
Carburetor!

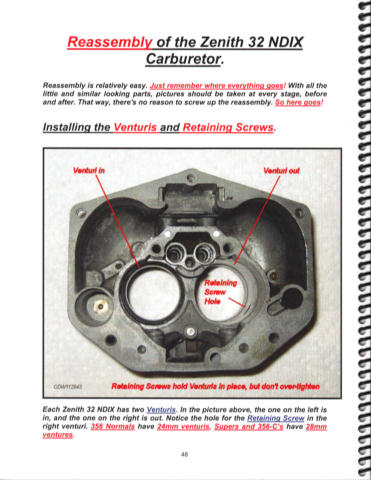

Installing Venturis & Retaining Screws - (page 48)
Installing Pump Pressure Valve & Pump Suction Valve - (page 50)

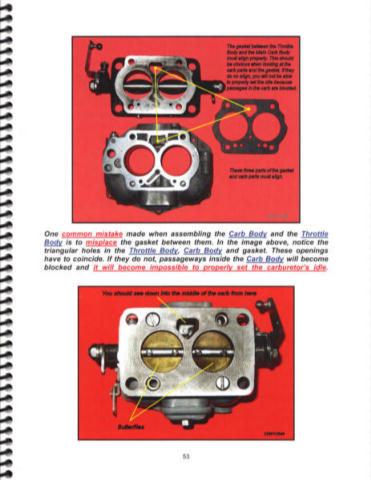

Reassembly of Main Carb Body & Throttle Body - (page 52)
Installing Pump Jets & Accelerator Pump Injection Nozzles - (page
54)
Installing Fixing Screw (Plug) - (page 56)
Installing Mixture Tube Holders (w/Diffusers), Air Correction Jets
- (page 57)

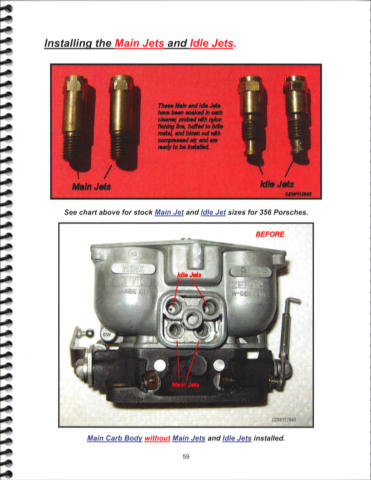

Installing Main Jets & Idle Jets - (page 59)
Installing Idle Mixture Screws - (page 61)
Installing Floats - (page 63)

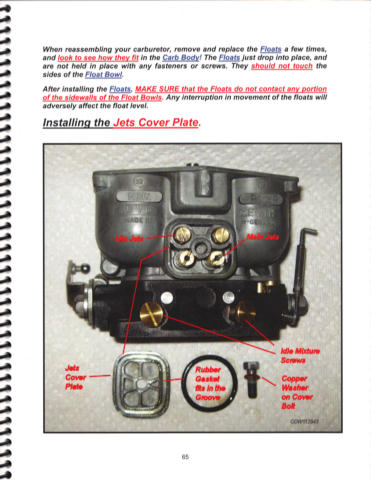

Installing Jets Cover Plate - (page 65)
Replacing Starter Cover - (page 69)
Checking Threaded Hole top of Carb Body for Return Spring Hook - (page
70)
Reassembly of Carburetor Top and Carburetor Body - (page 72)
Checking Tension Spring - (page 76)
Adjusting your Rebuilt
Carburetor!
Adjusting your Rebuilt Carburetor - (page 77)
Adjusting the Float Level - (page 77)
Checking/Adjusting Fuel Injection Ratio - (page 83)
Balancing Carburetors - (page 88)
Finished Carburetor & Some Summary Thoughts - (page 89)
Reference Sources!
|
Price: $43.00 each |
Within
Lower48USA:
$4.50 Postage USPS Media Mail
Personal Check to below address: |
Out of
USA:
$23.95 Priority Int.
Flat Rate Envelope
Bank Check on US Bank in US$ to:
|
Paypal
to:
derwhite@aol.com |
Charlie
White
8639 E Via de los Libros
Scottsdale, Arizona 85258 USA |
Lower48USA orders sent USPS
Media Mail!
Out of USA
orders USPS International
Priority Mail
Flat Rate Envelope!
|
