Below are examples of 356 Porsche Factory Electrical Wiring Diagrams from the period 1950 to 1965. They are presented in reverse order, with the latest wiring diagrams presented first, and the earliest wiring diagrams presented last. All of these wiring diagrams come from factory workshop manuals, owners manuals, and other factory sources. Interestingly, most 356 Porsche factory wiring diagrams were printed in black and white. Only the 356-B T-5 wiring diagram was printed in color initially as a poster. This color coded poster wiring diagram has been reduced in size and is presented below. The color wiring diagram shows the color codes of the individual wires in the electrial system, and makes following and identifying wires much easier. The T-5 color wiring diagram can be used for the subsequent 356-B T-6's and 356-C's, although there some minor differences.

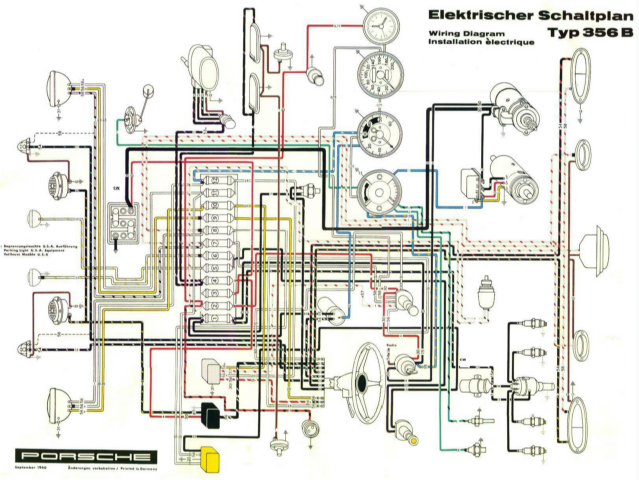

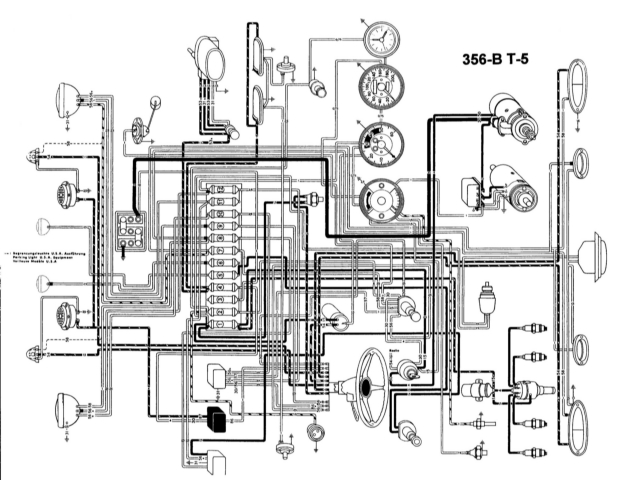

356 B T-5 Wiring Diagram (September 1960).




Click here for 356 Porsche Factory Technical Manuals For Sale!




Click
here
for
"Rebuilding Zenith 32 NDIX Carburetors"!

New Book, 8.5 x 11 Spiral Bound, 93 pages, 150+ photos, All Color, with step by step rebuild instructions!

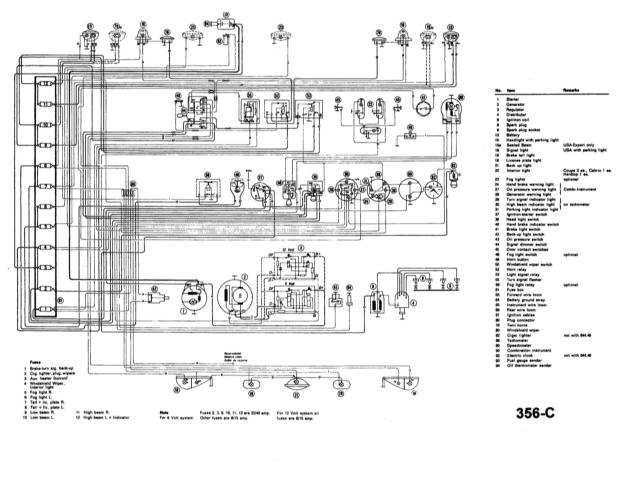

356-C Black and White Electrical Wiring Diagram.

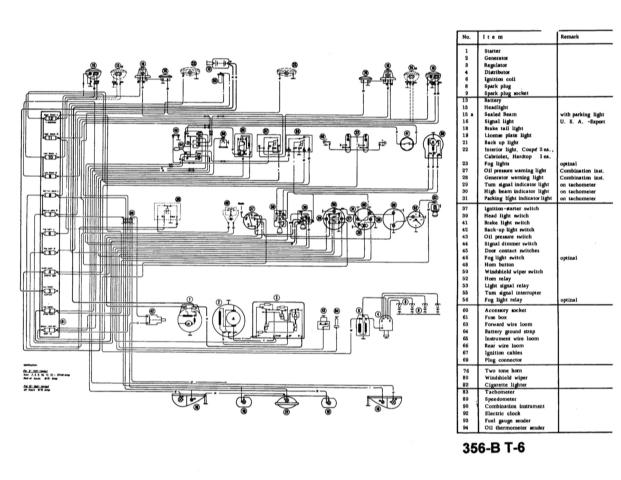

356-B T-6 Black and White Electrical Wiring Diagram.




356-B T-5
Black and White Electrical Wiring Diagram.

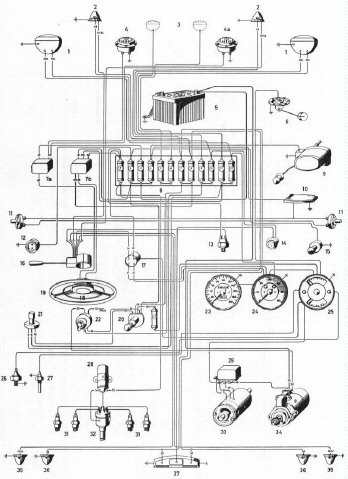

356-A Black and White Electrical Wiring Diagram.

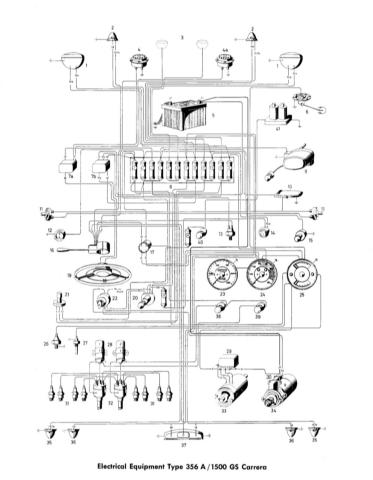

356-A Carrera 1500 GS Electrical Wiring Diagram.

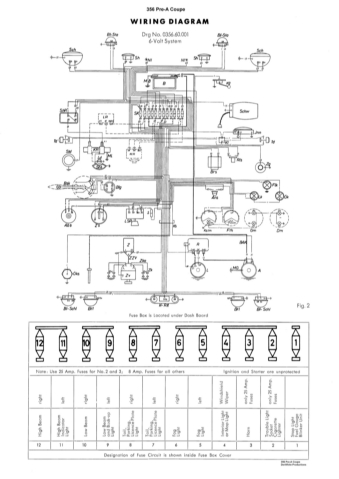

356 Pre-A Coupe Black and White Electrical Wiring Diagram.

356 Pre-A Coupe

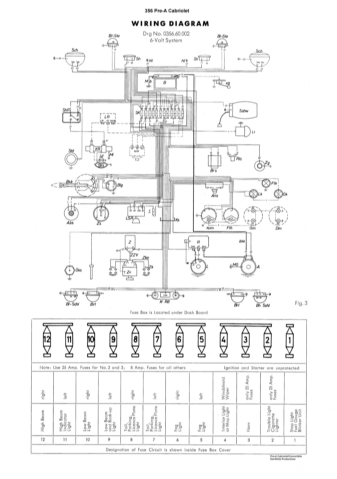

356 Pre-A Cabriolet Black and White Electrical Wiring Diagram.



356 Pre-A Cabriolet

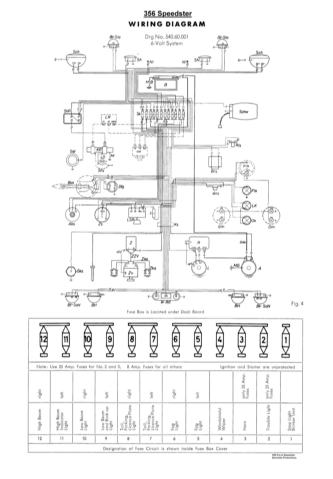

 356 Pre-A Speedster Black and White Electrical Wiring Diagram.

356  Pre-A Speedster

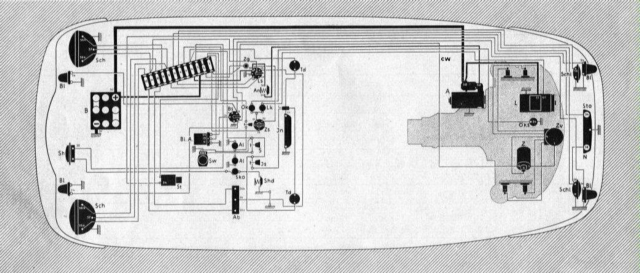

Very Early 356 Porsche Pre-A Electrial Wiring Diagram.
