A 1953 356 Porsche Coupe.....

                                                                                      By Charlie White, Scottsdale, Arizona



                                                         Photo copyrighted

Passenger's side front.


                                                                                                                            Photo copyrighted

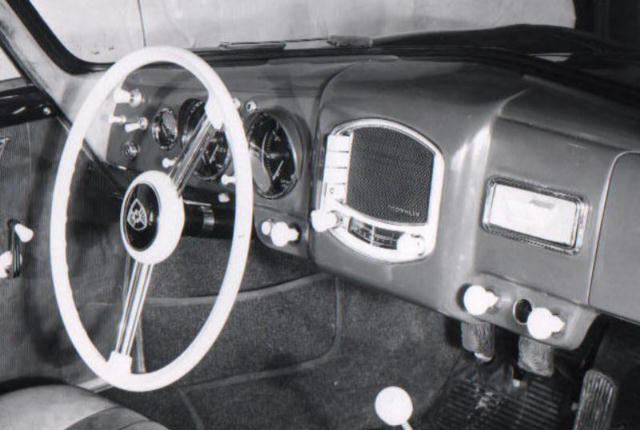

"The Cockpit"

What do we see here........that is of interest?

1. A two spoke steering wheel.
2. Seats with corduroy inserts, and corduroy door panels.
3. Square foot pedal pads.

4. An early Telefunken radio with vertical pushbuttons.
5. Second generation black/green Viegel speedo/tach with hoods (BJ).

6. VW style ivory dash knobs and ivory steering wheel (BJ).
7. A single plastic sun visor in chrome frame.
8. Early oval overhead interior light centered above the windshield.
9. Handle for fresh air slide, below left side of dash.
10. Headlight switch upper left side of dash.

11. No grab handle on the dash.

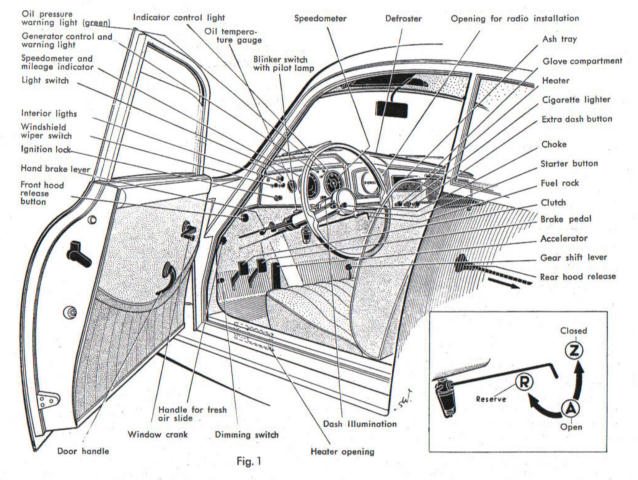

                                                                                                                      Source:  1953 Owner's Manual

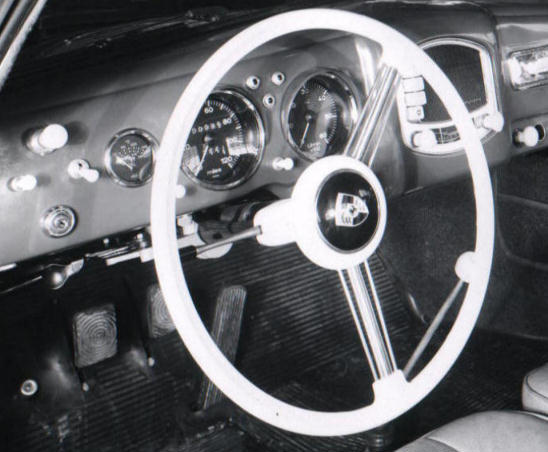

A Closer view...........


                                                                                                                Photo copyrighted


12. A temperature gauge left of speedometer in Centigrade, lower numbers Fahrenheit (BJ).
13. 3 "idiot lights" between the hooded speedometer and tachometer.
14. 120 mph speedometer, 6000 RPM tach.
15. Shaded area on the tach between 3,000 and 4,500 RPM.

16. Dash illumination light switch, bottom of dash between speedo & tach.
17. Chrome ashtray.
18. Emergency brake to the left of the steering column.
19. Is that a "black" knob on the turn signal switch?
20. What is the switch on bottom left of the speedo?

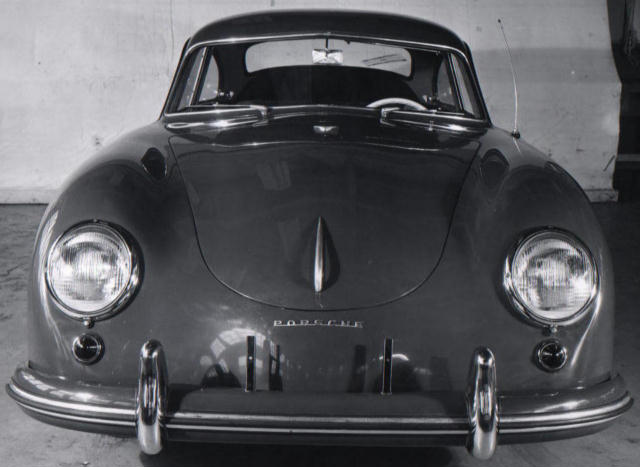

The Whole Front.


                                                                                                                                                                                   Photo copyrighted

21. Early hood handle with hole (you'll see the hole in a later photo).

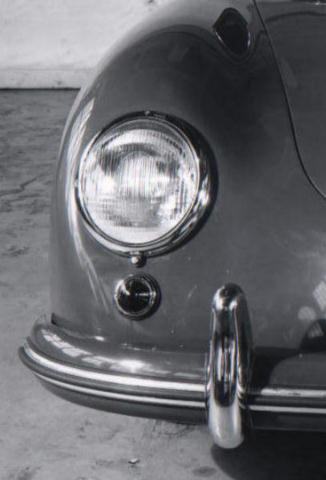

22. "Dark" possibly amber (odd!) beehive turn signal lights/park lights (BJ)?
23. Vertical license plate brackets above the bumper.
24. Early  "P O R S C H E"  aluminum script (BJ).
25. Bosch symmetric lights with adjusters at 12 and 9 o'clock (BJ).
26. Full deco-strip on front detached bumper.
27. One piece "bent" windshield.
28. Windshield wipers facing "opposite" directions at rest.
29. No exterior rear view mirrors!

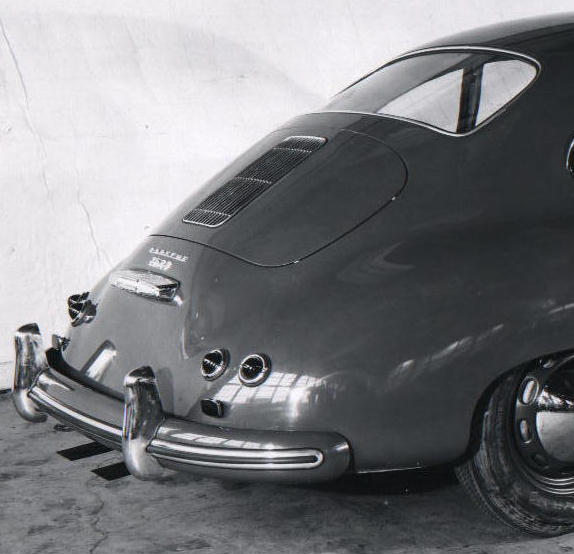

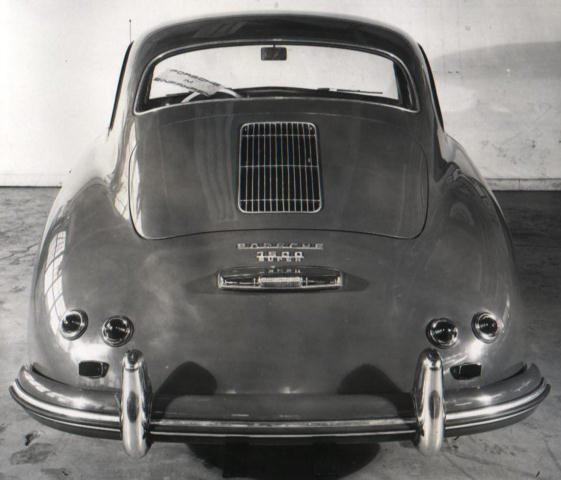

The Whole Rear.


                                                                                                                   Photo copyrighted

30. Shine down licence plate light.
31. Dual beehive taillights right and left.
32. Square inside rear view mirror.
33. Single engine compartment vent grill.
34. Early "wide" rear bumper guards?

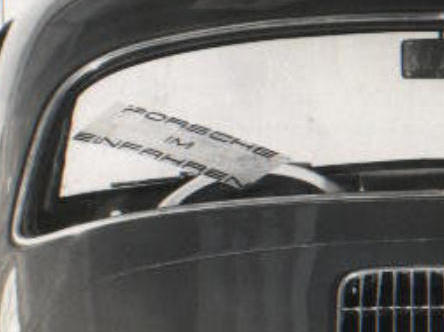

35. Still has the "Porsche im Einfahren" sticker on rear window.
36. This 356 is a 1500 Super!
37. No holes drilled for a licence plate!



                                             Photo copyrighted                                                                                                                           Photo copyrighted

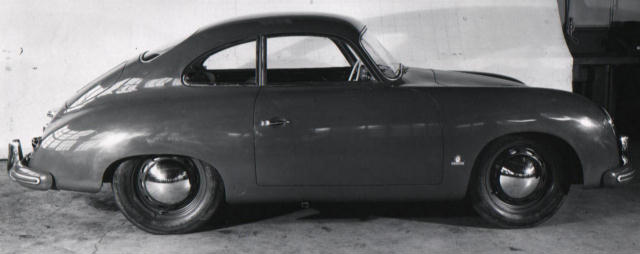

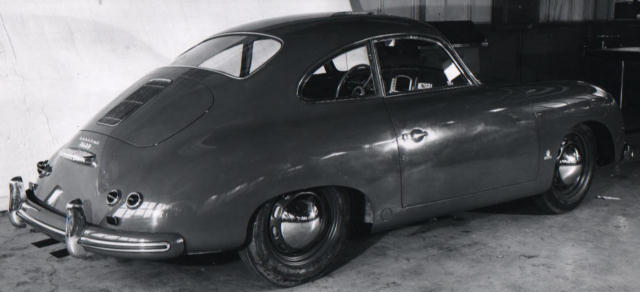

The "Right" Side.


                                                                                                                                                                          Photo copyrighted

38. Wheels are the color of the body with "moon" hubcaps.
39. Body builder badge on lower fender behind front wheel.


                                                            Photo copyrighted

40. Early "Reutter" coachbuilder badge.

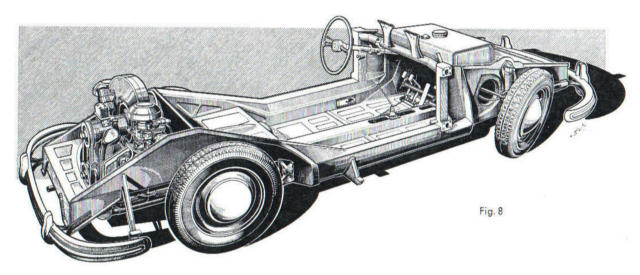

                                                                                                                                                             Source:  1953 Owner's Manual


                                                                                                                                                                                   Photo copyrighted

41.  Lower rocker panel curved in, no deco strip.

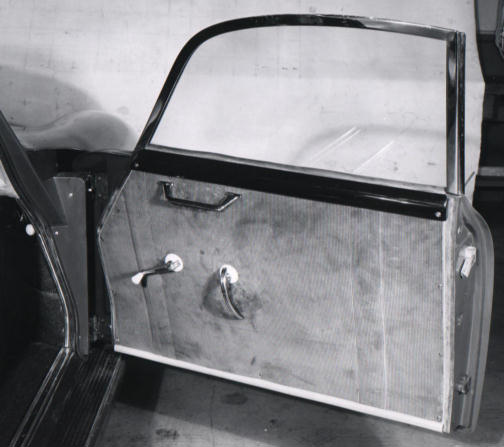

Inside Passenger Door.


                                                                                                    Photo copyrighted

42. Corduroy door panel.
43. Can't tell if "whatchacallit" above the door panel is body color or darker (BJ).
44. Chrome door pull.
45. Chrome window frame.

46. No door pockets.

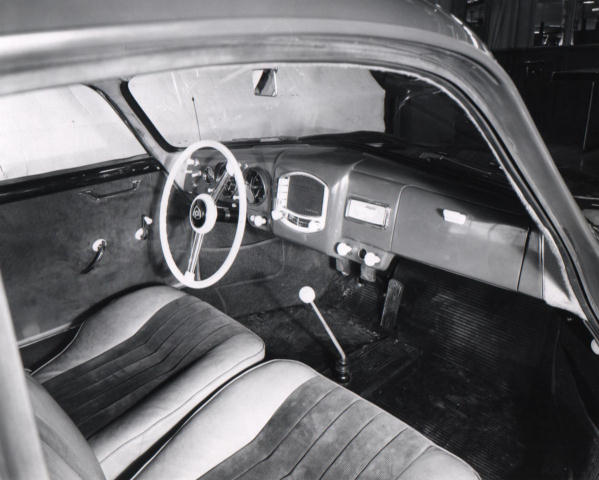

Passenger Compartment.


                                                                                                                            Photo copyrighted

47. Chrome ashtray.
48. Chrome door pull, driver's door.
49. Bent shift lever.
50. Full black rubber floor mat.
51. Heat control on dash left of lighter, not on floor in front of shifter (BJ).


                                                                                                                                      Photo copyrighted

52. Just below and left of radio is choke (large) and starter button (small).
53. Under the ashtray, in order:  heater knob, cigarette lighter, and "extra" knob.
54. Notice ribbed window crank, left side of picture above.
55. See the metal "Telefunken" script on speaker cover of radio.


                                                            Photo copyrighted                                                  Photo copyrighted

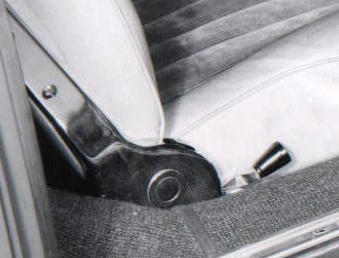

56. Reclining seat mechanism.
57. "Black knob" on seat mechanism.

58. Early door lock post, black painted screw heads on striker screws (BJ).

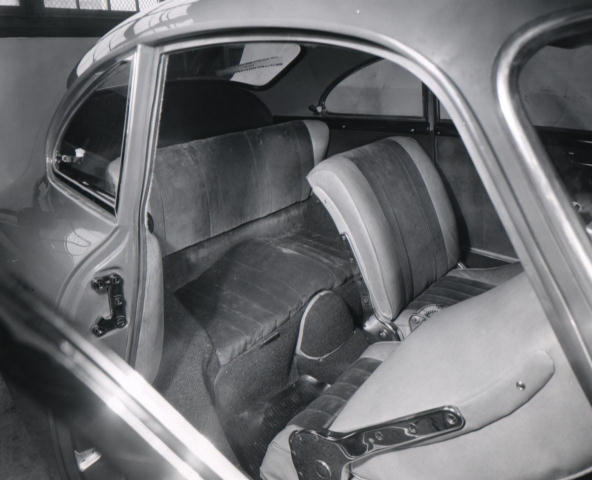

                                                                                                                                                                   Photo copyrighted

59. Full double rear seat back with corduroy insert.
60. Double rear seat cushion, corduroy.
61. Pop out rear quarter windows with white "crown" knobs (BJ).
62. Carpet with rear rubber mats.

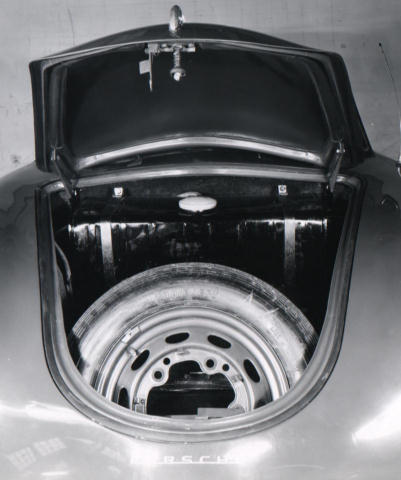

Front Trunk, Gas Tank, & Spare Tire.

z
                                                                         Photo copyrighted

63. Black painted gas tank.
64. No fuel tank sender.
65. Silver painted gas tank straps.

66. Slotted early 3.25" x 16" drum brake wheel (BJ).
67. No spare tire strap.


                                                   Source:  1953 Owner's Manual

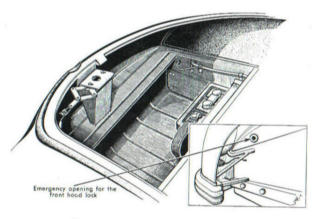

68. Diagram shows emergency opening for hood lock.


                                                                                                                                      Photo copyrighted

69. Hood hinges are the color of the body, and black at back (BJ).


                                                                                  Photo copyrighted

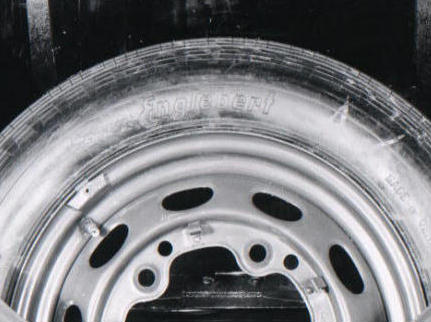

70. Slotted 3.25" x 16" wheel (BJ).
71. Tire by "Englebert", made in West Germany.
72. Spare tire is balanced, riveted on wheel weight (BJ).

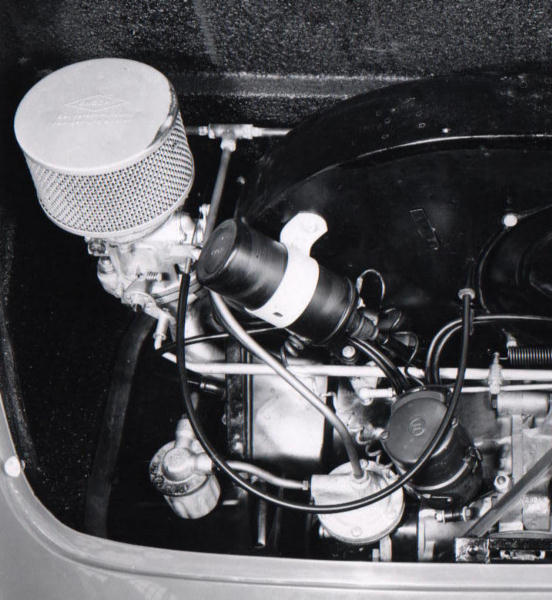

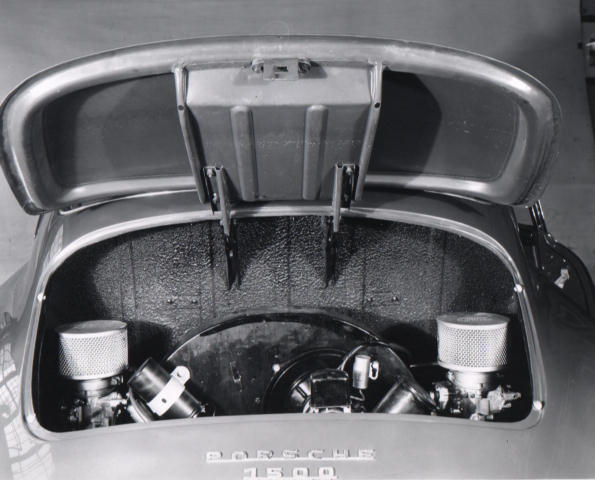

Engine Compartment.


                                                                                                                                                             Photo copyrighted

73. Dual exhaust pipes.


                                                                                                                          Photo copyrighted

74. White (or cream colored) rear deck lid rubber bumpers.
75. Back of engine compartment appears to have sprayed on undercoating.

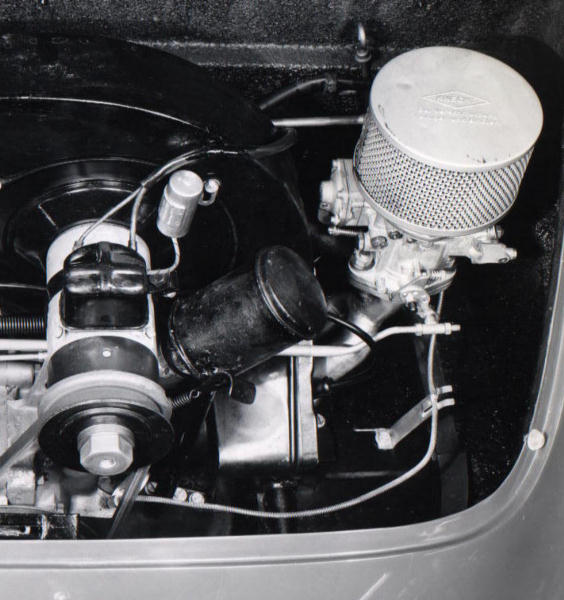

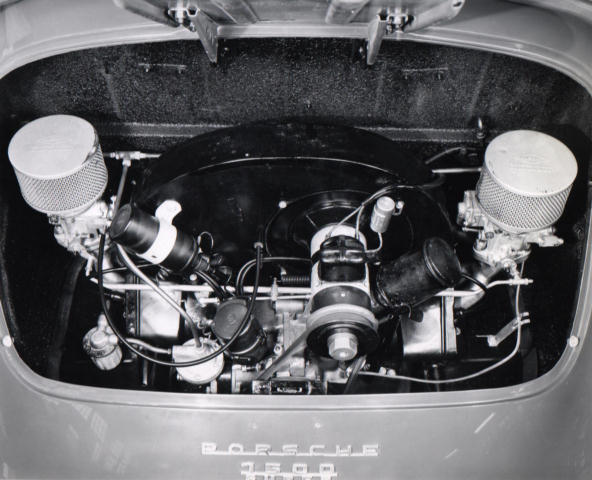

                                                                                                                                                                  Photo copyrighted

76. Metal fuel filter.
77. 40 PBIC Solex Carburetors.
78. Oil moistened metal mesh air filters.
79. Early Bosch VE 4 BRS 383 distributor.
80. Black voltage regulator on top of generator.
81. Radio suppression on fan shroud.


                                                                                                                   Photo copyrighted

82. The line from block under generator going thru the support to the front of the compartment is the dipstick oil temp gauge capillary line from the Störk gauge (BJ).


                                                                                                                 Photo copyrighted


The Source of these Photos!

Many years ago, I purchased a collection of Porsche literature to add to my beginning collection. Among the items was an envelope containing 13 high resolution black and white photos of a 1953 Porsche 1500 Super Coupe. All of the photos were stamped:  Department of Technical Data and Information, Central Engineering, Chrysler Corporation, Detroit, Michigan. Apparently the photos were part of a design study conducted by Chrysler. The 13 pictures comprehensively cover the insides and outsides of the car. Unfortunately, no photos were included of the underside of the car. Close examination of one of the photos reveals that there are 93 miles on the odometer, possibly the distance between where the car was purchased and the Chrysler Engineering offices. But then, maybe, some of those miles represent spirited driving by some of the Chrysler Engineers! Who knows. The back window still has the "Porsche im Einfahren" sticker which I think translates to:  "Porsche in transit", or something like that. Below is an image of what we called in the military, a "buck slip" that was attached to the photos. I hope this website will add to our collective knowledge about our early 356's, and be of some use to those restoring these early cars.

                                                                                                      Charlie White, Scottsdale, Arizona


The Beginning.


                                                                                                                                                                                   Photo copyrighted

The End.
